Photosynthesis: the light reactions and the Calvin cycle, in 3D

1Light to sugar

Photosynthesis uses light energy, carbon dioxide and water to make sugar — and releases oxygen.

Overall: 6 CO₂ + 6 H₂O → C₆H₁₂O₆ + 6 O₂, powered by light. Light energy ends up stored as chemical energy in the bonds of sugar.

Plants, algae and cyanobacteria do it; animals, fungi and most other bacteria rely on the sugars it makes. It powers 99 % of Earth's ecosystems.

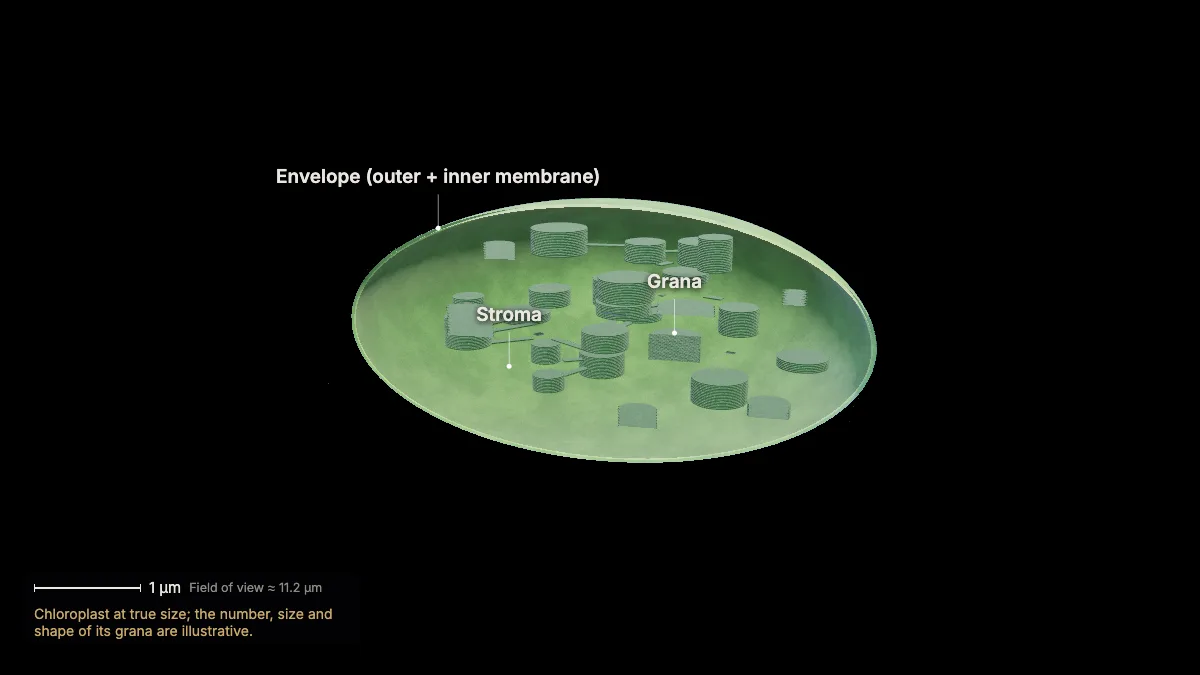

In plants and algae it happens in chloroplasts — in leaves, mostly in the mesophyll cells.

• Chloroplast≈ 5 µm across, 2.5 µm thick

In the model: Chloroplast at true size; the number, size and shape of its grana are illustrative.

Watch this step in 3D →

2Inside the chloroplast

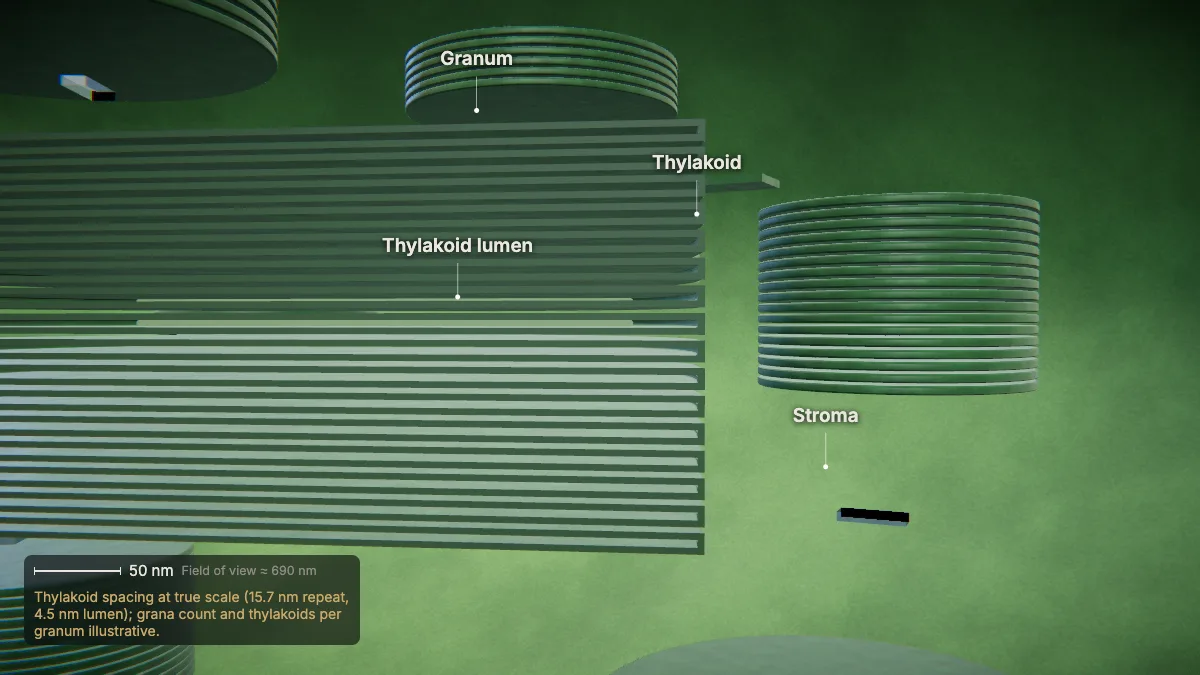

Inside the chloroplast's two envelope membranes are stacks of thylakoids — grana — bathed in a fluid, the stroma.

The space inside each thylakoid is the thylakoid lumen. A mature chloroplast may hold 40–60 grana, each 0.3–0.6 µm across.

The light-dependent reactions happen in the thylakoid membranes; the Calvin cycle happens in the stroma.

Chloroplasts descend from ancient free-living cyanobacteria.

• Granum0.3–0.6 µm across
• Thylakoid repeat15.7 nm

In the model: Thylakoid spacing at true scale (15.7 nm repeat, 4.5 nm lumen); grana count and thylakoids per granum illustrative.

Watch this step in 3D →

3The thylakoid membrane

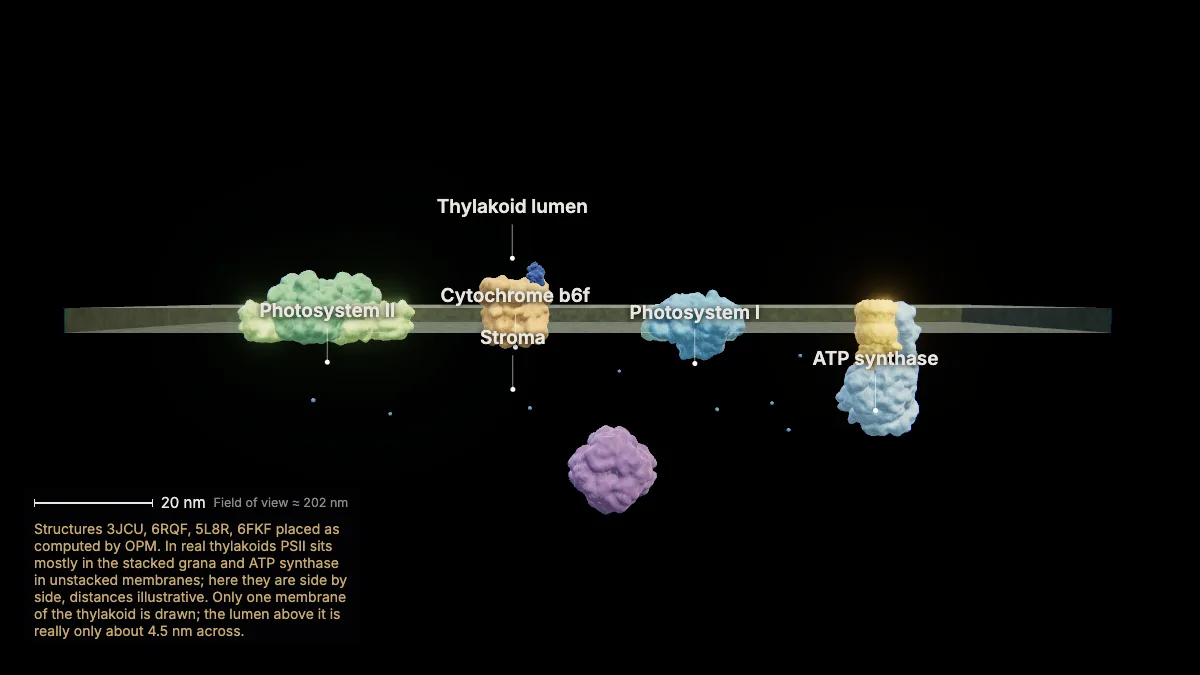

Built into the thylakoid membrane are photosystem II, the cytochrome b6f complex, photosystem I and ATP synthase.

Photosystems II and I are connected by an electron transport chain. They are numbered in the order they were discovered, not the order electrons pass through them.

Each is shown at true size, from spinach and pea structures. The lumen is above the membrane; the stroma below.

• PSII–LHCII≈ 27 nm long
• Membrane≈ 4 nm thick

In the model: Structures 3JCU, 6RQF, 5L8R, 6FKF placed as computed by OPM. In real thylakoids PSII sits mostly in the stacked grana and ATP synthase in unstacked membranes; here they are side by side, distances illustrative. Only one membrane of the thylakoid is drawn; the lumen above it is really only about 4.5 nm across.

Watch this step in 3D →

4Capturing light

Chlorophyll absorbs blue and red light but not green — that is reflected, so leaves look green.

A photon absorbed anywhere in the antenna excites a chlorophyll. The energy — not an electron — is passed from chlorophyll to chlorophyll until it reaches the reaction center, in about a millionth of a second.

Carotenoids, the other pigments, absorb excess energy and release it as heat.

• Chlorophylls in this PSII–LHCII156 a + 50 b

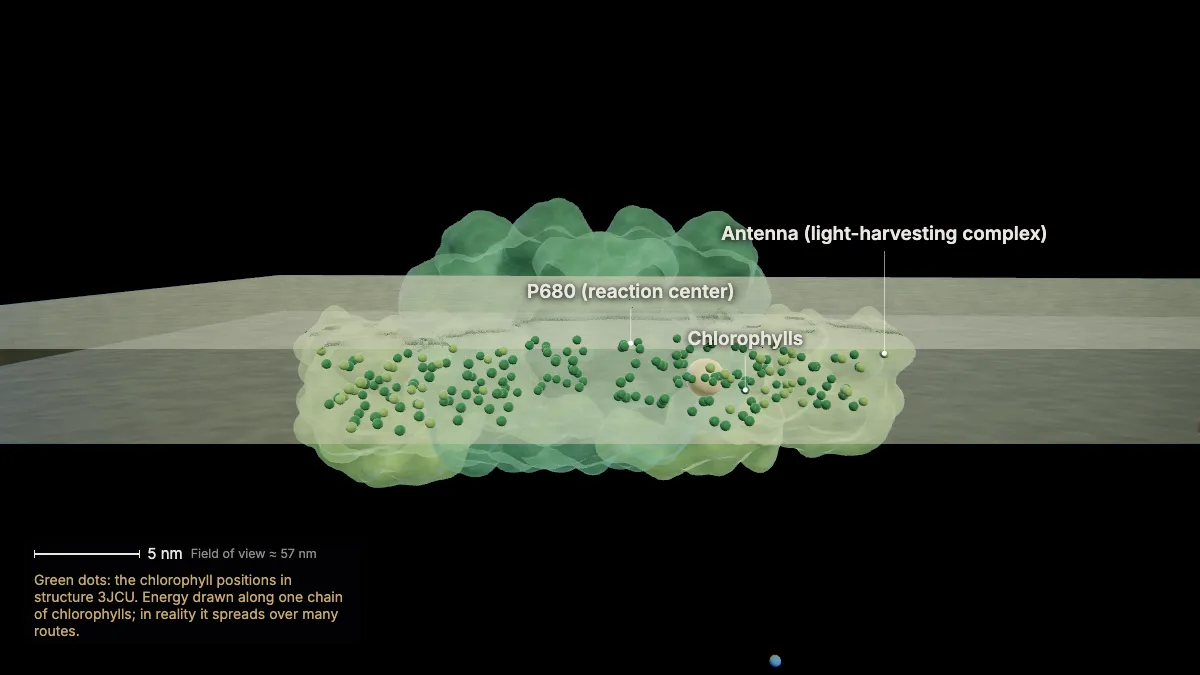

In the model: Green dots: the chlorophyll positions in structure 3JCU. Energy drawn along one chain of chlorophylls; in reality it spreads over many routes.

Watch this step in 3D →

5Photosystem II

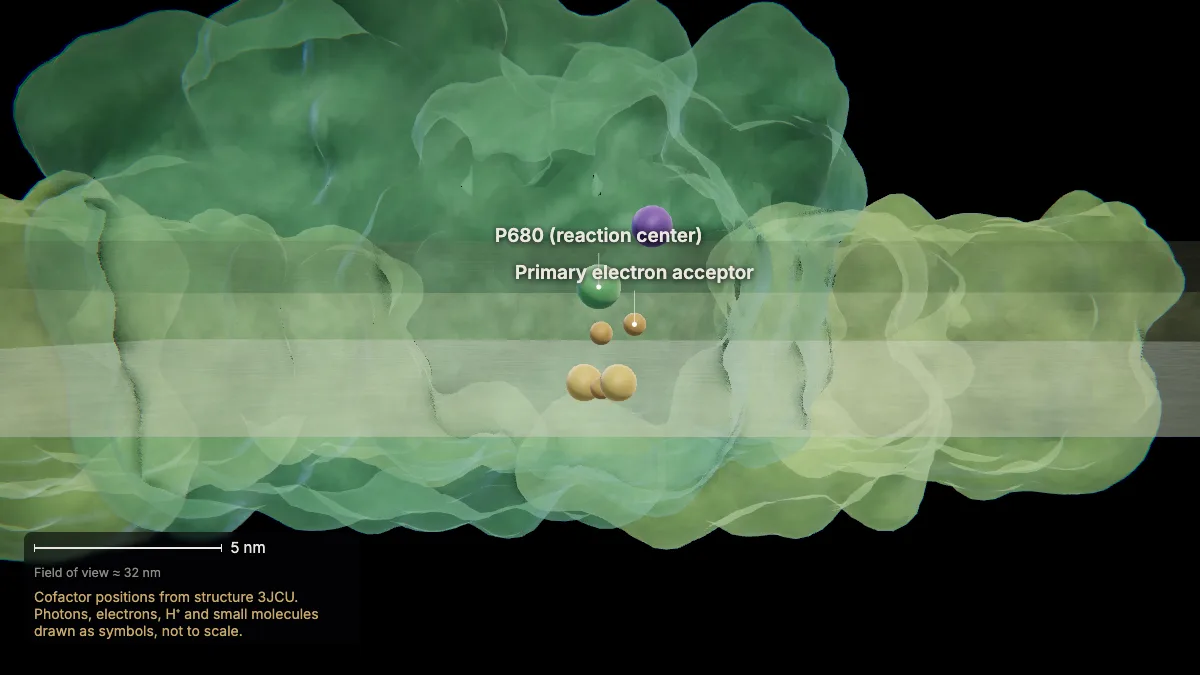

In the reaction center, P680 — a special pair of chlorophyll a — gives up its excited electron to the primary electron acceptor.

This is where light energy becomes an energized electron.

From the acceptor, the electron passes on to the carrier plastoquinone (Pq).

In the model: Cofactor positions from structure 3JCU. Photons, electrons, H⁺ and small molecules drawn as symbols, not to scale.

Watch this step in 3D →

6Water is split

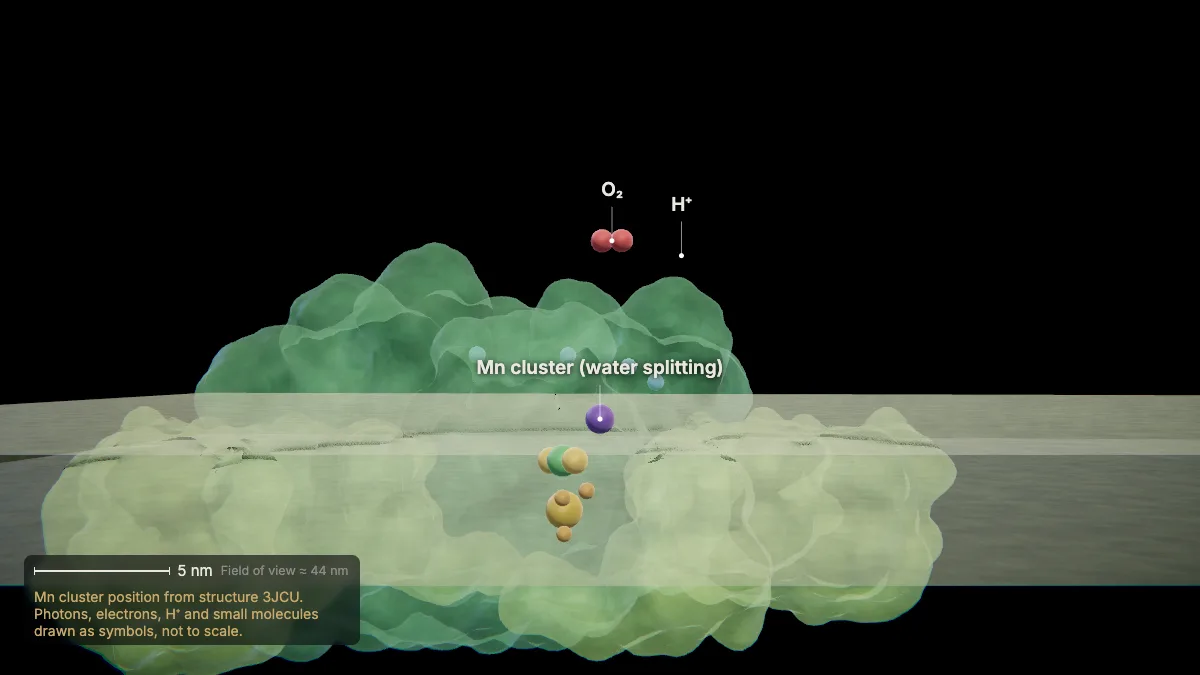

P680's lost electrons are replaced with electrons from water: at a cluster of manganese atoms, water is split.

Splitting two water molecules gives four electrons, four hydrogen ions — left in the lumen — and one O₂.

The oxygen is released as a by-product: its atoms come from water. Some is used by the leaf's own mitochondria; most escapes to the air.

In the model: Mn cluster position from structure 3JCU. Photons, electrons, H⁺ and small molecules drawn as symbols, not to scale.

Watch this step in 3D →

7The electron transport chain

Plastoquinone carries the electrons to the cytochrome b6f complex; the protein plastocyanin then carries them, through the lumen, to photosystem I.

Each hand-over is an oxidation–reduction reaction. The electrons lose energy on the way, and that energy moves hydrogen ions from the stroma into the lumen.

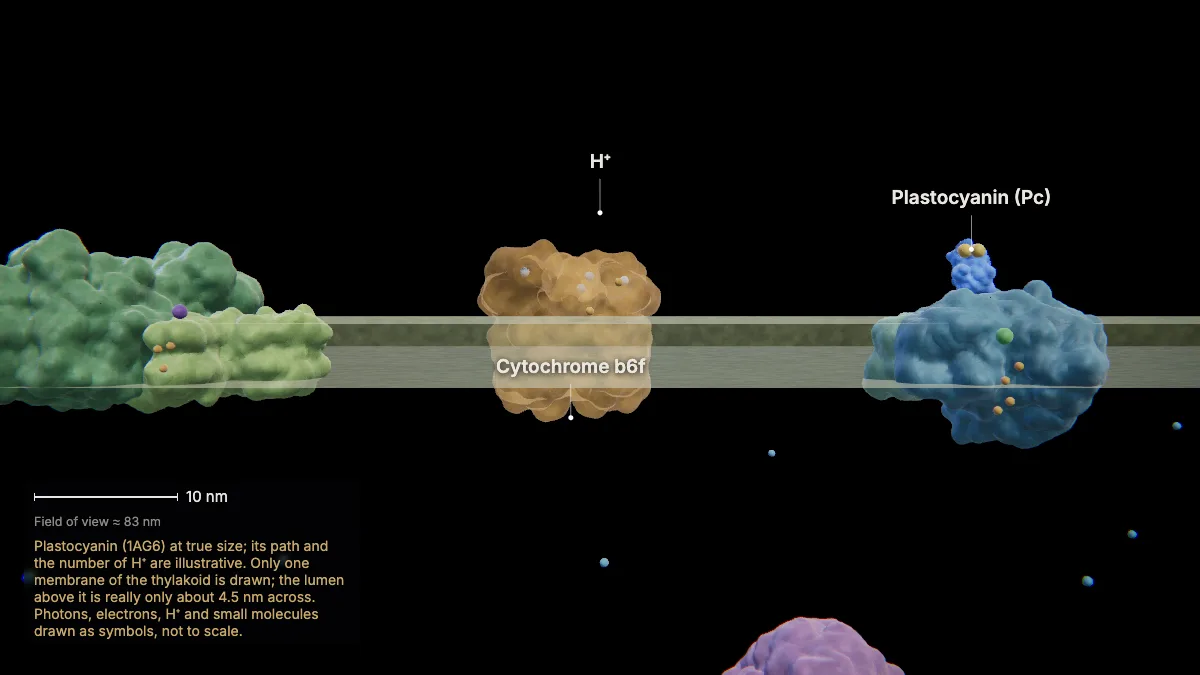

In the model: Plastocyanin (1AG6) at true size; its path and the number of H⁺ are illustrative. Only one membrane of the thylakoid is drawn; the lumen above it is really only about 4.5 nm across. Photons, electrons, H⁺ and small molecules drawn as symbols, not to scale.

Watch this step in 3D →

8Photosystem I and NADPH

The electrons reach photosystem I with less energy. Another photon, passed to its reaction center P700, energizes them again.

Photosystem I hands the electrons to NADP⁺ in the stroma, reducing it to NADPH.

So photosystem II captures the energy that builds the proton gradient used for ATP; photosystem I, the energy that makes NADPH.

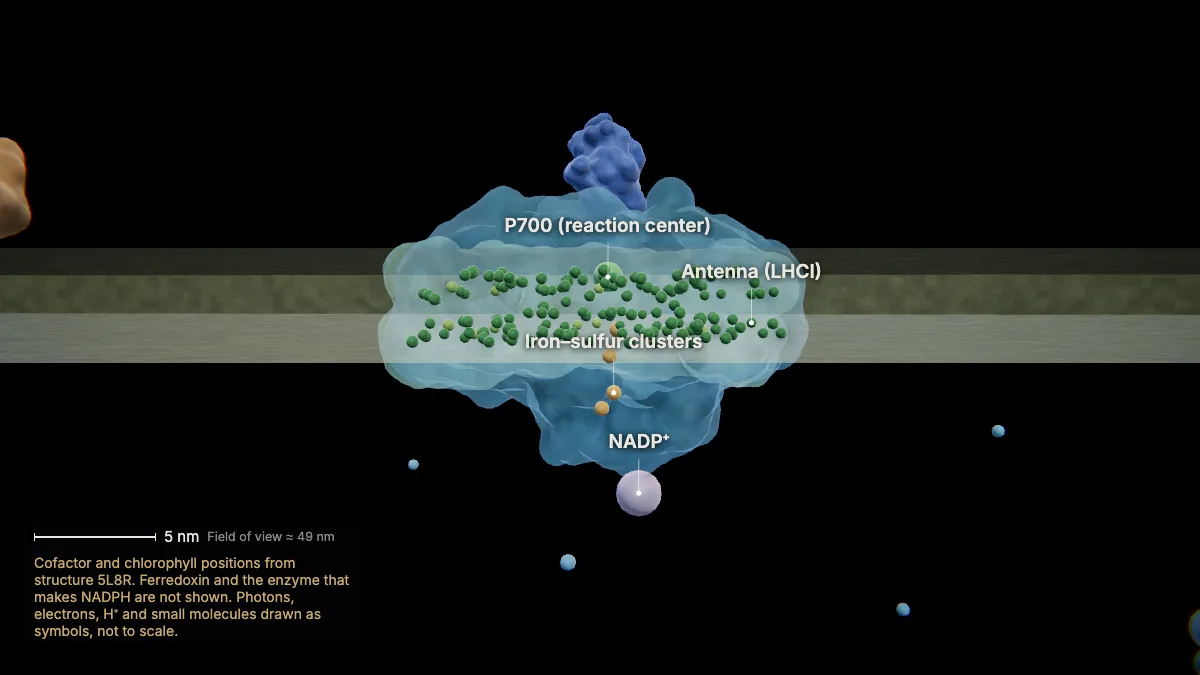

In the model: Cofactor and chlorophyll positions from structure 5L8R. Ferredoxin and the enzyme that makes NADPH are not shown. Photons, electrons, H⁺ and small molecules drawn as symbols, not to scale.

Watch this step in 3D →

9A proton gradient

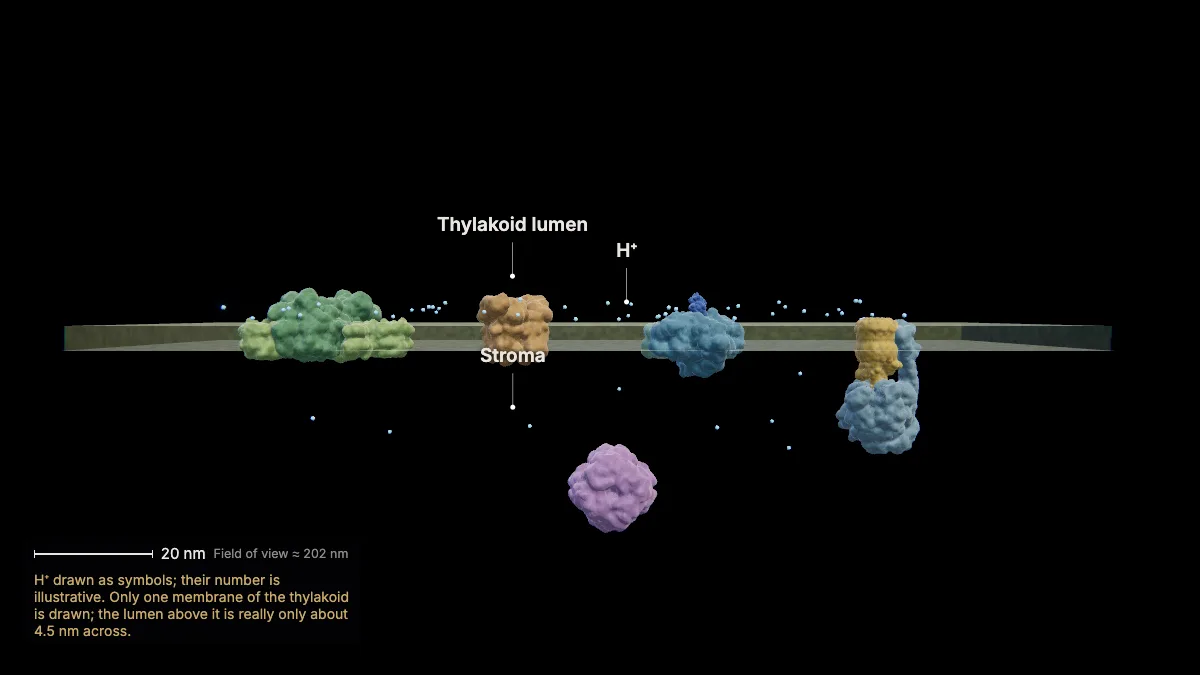

Hydrogen ions build up inside the thylakoid: high in the lumen, low in the stroma — an electrochemical gradient across the membrane.

Protons from splitting water add to the lumen, and making NADPH removes protons from the stroma. The lumen ends up at low pH, the stroma at high pH.

In the model: H⁺ drawn as symbols; their number is illustrative. Only one membrane of the thylakoid is drawn; the lumen above it is really only about 4.5 nm across.

Watch this step in 3D →

10Chloroplast ATP synthase

Protons flow back to the stroma through ATP synthase. Its F₁ head sticks into the stroma; F₀ sits in the membrane.

This spinach enzyme has 26 protein subunits. Its rotor ring has 14 c-subunits — the human mitochondrial ring in chapter 5 has 8.

In the thylakoid, ATP synthase sits in the unstacked membranes.

• c-ring14 subunits
• Length (PDB 6FKF)≈ 23 nm

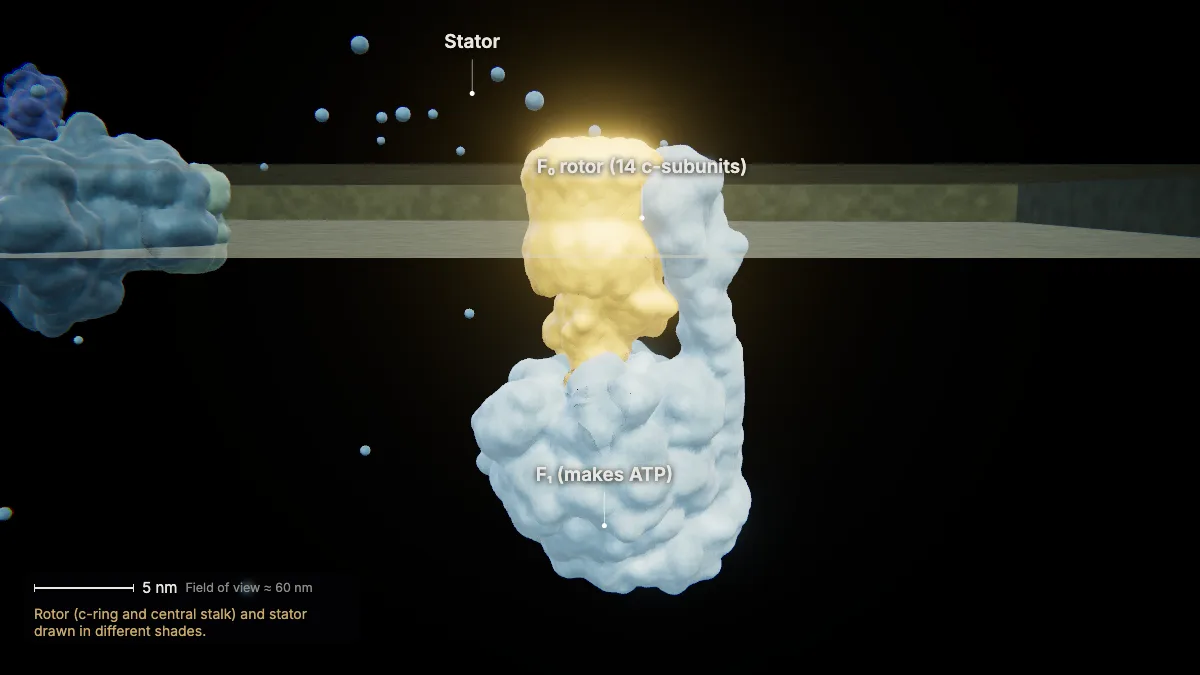

In the model: Rotor (c-ring and central stalk) and stator drawn in different shades.

Watch this step in 3D →

11Photophosphorylation

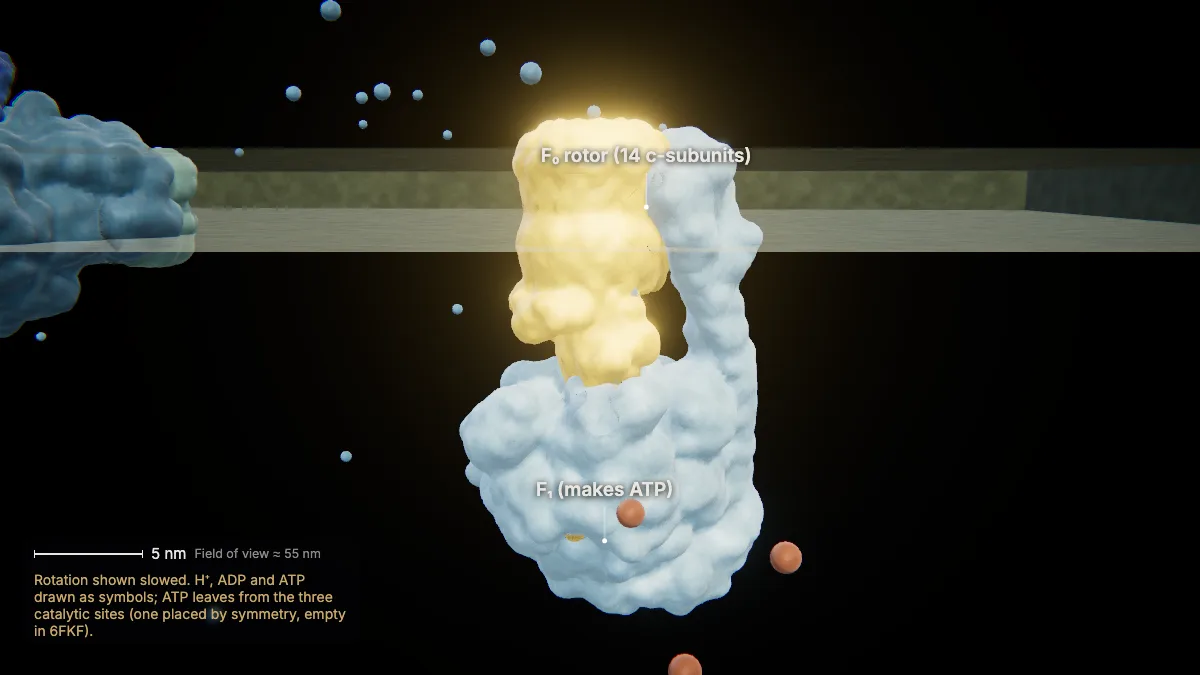

Protons flowing back through F₀ turn the rotor, and F₁ makes ATP from ADP and phosphate — photophosphorylation.

This is chemiosmosis, as in mitochondria. The chloroplast enzyme uses about 4.7 protons for each ATP.

In the model: Rotation shown slowed. H⁺, ADP and ATP drawn as symbols; ATP leaves from the three catalytic sites (one placed by symmetry, empty in 6FKF).

Watch this step in 3D →

12Fixing carbon

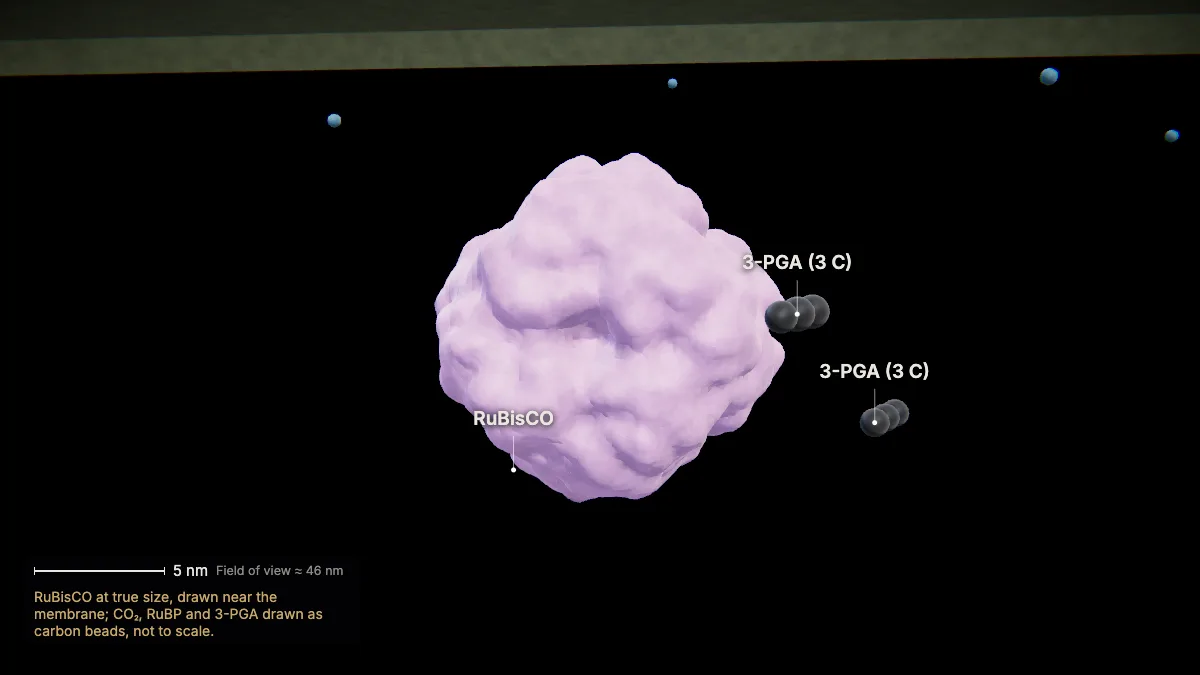

In the stroma, the enzyme RuBisCO joins CO₂ to RuBP, a five-carbon molecule: carbon fixation, from inorganic to organic.

Each CO₂ and RuBP give two molecules of 3-PGA, with three carbons each.

This is the first stage of the Calvin cycle, which runs on the ATP and NADPH from the light reactions.

• RuBisCO (PDB 8RUC)8 large + 8 small subunits
• Size≈ 13 nm

In the model: RuBisCO at true size, drawn near the membrane; CO₂, RuBP and 3-PGA drawn as carbon beads, not to scale.

Watch this step in 3D →

13The Calvin cycle

Three turns fix three CO₂. ATP and NADPH reduce the 3-PGA to G3P; one G3P leaves, and the other five rebuild three RuBP.

Fixation: 3 CO₂ + 3 RuBP → 6 3-PGA — 3 + 15 = 18 carbons, all kept. Reduction uses 6 ATP and 6 NADPH; regeneration uses 3 more ATP.

Two exported G3P make one glucose, so six turns are needed per glucose. The ADP and NADP⁺ return to the light reactions.

It was once called the "dark reactions", but it needs the light reactions' products, and some of its enzymes are switched on by light.

• For one G3P3 CO₂ · 9 ATP · 6 NADPH
• Turns per glucose6

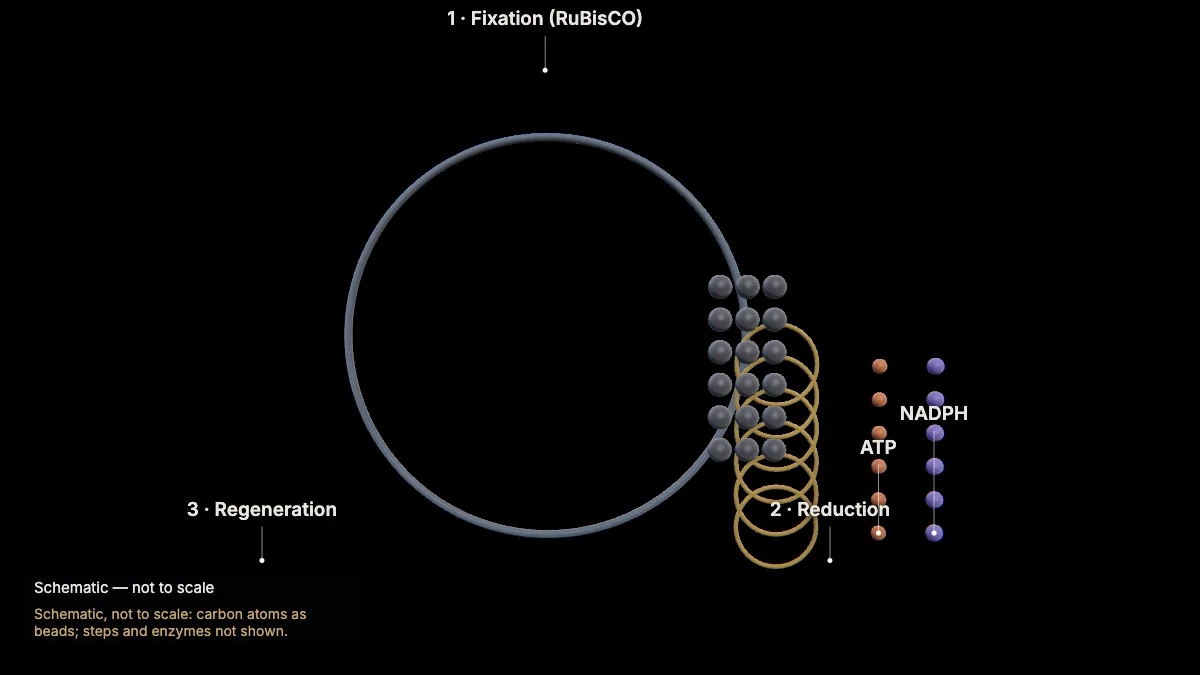

In the model: Schematic, not to scale: carbon atoms as beads; steps and enzymes not shown.

Watch this step in 3D →

14Photosynthesis and respiration

Photosynthesis takes in CO₂ and releases O₂; cellular respiration takes in O₂ and releases CO₂. Together they cycle carbon.

Plants do both: their mitochondria break down the sugars their chloroplasts make. Both processes use an electron transport chain.

Photosynthesis first evolved in prokaryotes; cyanobacteria filled Earth's atmosphere with oxygen.

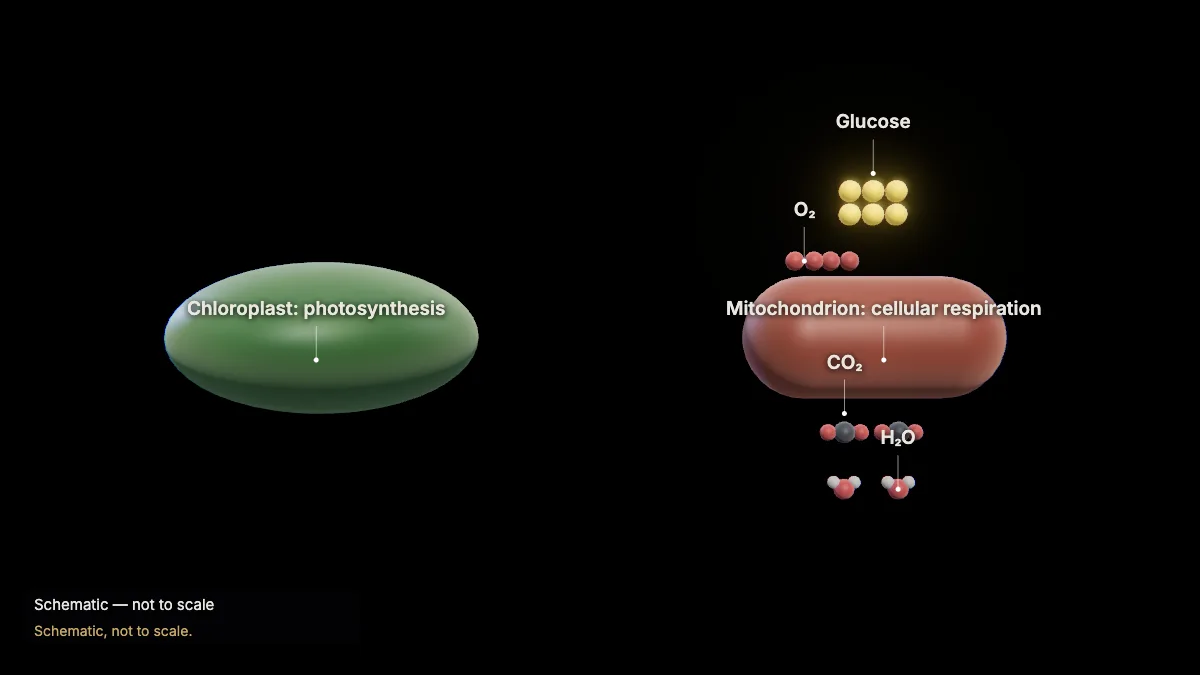

In the model: Schematic, not to scale.

Watch this step in 3D →
